Mud Recycling
To match the right size recycling unit, we offer systems from 800 LPM to 3500 LPM. All systems are built with the job site in mind. Efficient desanders and desilters work in conjunction of effective screen shakers to “clean” the mud to less than 1% sand content.
800 l/min - 1.400 l/min
Charging Pump:
45 kW
Transfer Pump:
15 kW

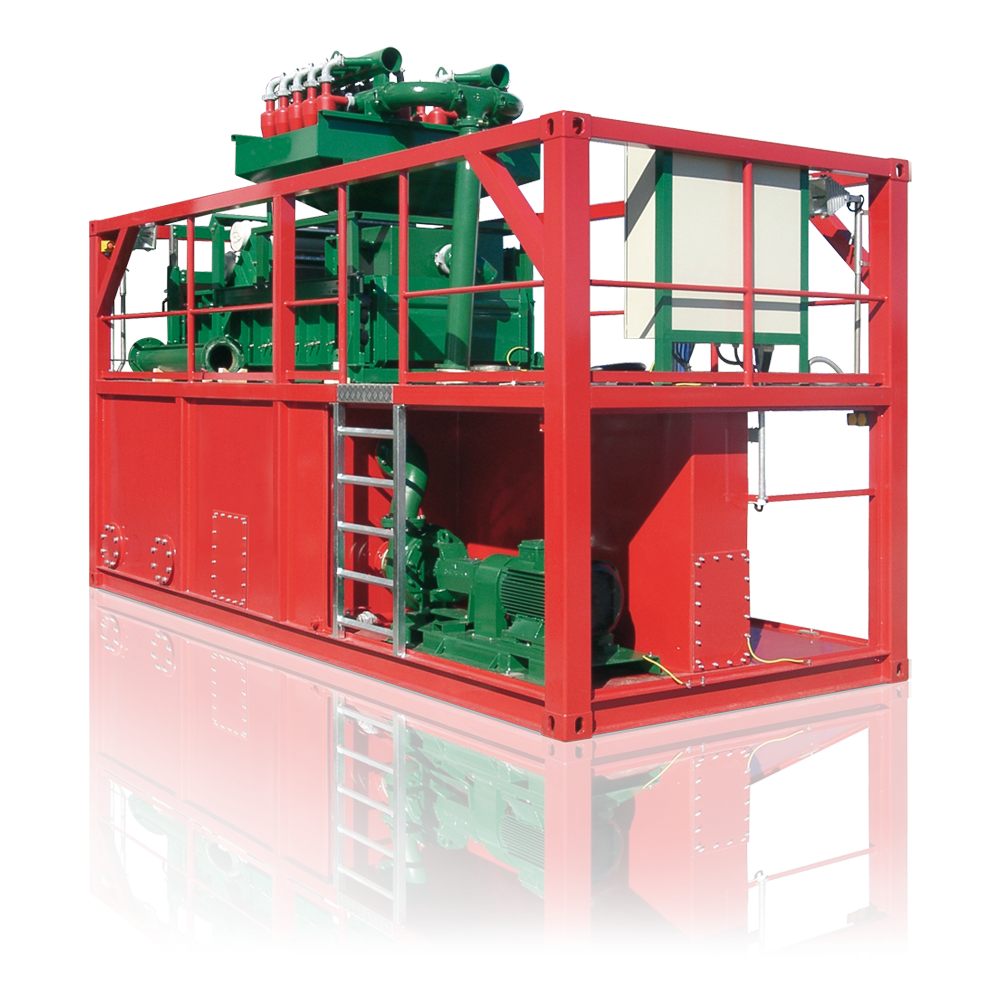

To protect the environment as well as for economical cost reasons, we also provide units for recycling treatment of series PD R-1.000 E for conditioning of the bentonite, that has been defiled by sand, mud and debris. The mud recycling units are equipped by screen devices hydro cyclones (so called "desilters"), which wash the solid out of the bentonite liquid so that the solid content is under 1%.
For that reason the bentonite pump conserves in a good state and wearing of parts at suction and pumping the treated bentonite through the flushing circuit. Due to a modular construction (20 ft. container) a maximum of flexibility is guaranteed. Easy handling for height adjustment and quick change systems of the screen devices as well as worldwide disposability of replacement screens of any type characterise our devices. The circulation pumps, which bring the bentonite into the recycling circuit and the transferpumps are equipped with electro motors. Depending on the size of the mud recycling unit, the recycling rate is between 800 l/min and 1,400 l/min.
1.600 l/min - 2.400 l/min
Charging Pump:
55 kW
Transfer Pump:
22 kW
To protect the environment as well as for economical cost reasons, we also provide units for recycling treatment of series PD R-2.000 E for conditioning of the bentonite, that has been defiled by sand, mud and debris. The mud recycling units are equipped by screen devices hydro cyclones (so called "desilters"), which wash the solid out of the bentonite liquid so that the solid content is under 1%.
For that reason the bentonite pump conserves in a good state and wearing of parts at suction and pumping the treated bentonite through the flushing circuit. Due to a modular construction (20 ft. container) a maximum of flexibility is guaranteed. Easy handling for height adjustment and quick change systems of the screen devices as well as worldwide disposability of replacement screens of any type characterise our devices. The circulation pumps, which bring the bentonite into the recycling circuit and the transferpumps are equipped with electro motors. Depending on the size of the mud recycling unit, the recycling rate is between 1,600 l/min and 2,400 l/min.
2.700 l/min - 3.500 l/min
Charging Pump:
75 kW
Transfer Pump:
45 kW
To protect the environment as well as for economical cost reasons, we also provide units for recycling treatment of series PD R-3.000 E for conditioning of the bentonite, that has been defiled by sand, mud and debris. The mud recycling units are equipped by screen devices hydro cyclones (so called "desilters"), which wash the solid out of the bentonite liquid so that the solid content is under 1%.
For that reason the bentonite pump conserves in a good state and wearing of parts at suction and pumping the treated bentonite through the flushing circuit. Due to a modular construction (20 ft. container) a maximum of flexibility is guaranteed. Easy handling for height adjustment and quick change systems of the screen devices as well as worldwide disposability of replacement screens of any type characterise our devices. The circulation pumps, which bring the bentonite into the recycling circuit and the transferpumps are equipped with electro motors. Depending on the size of the mud recycling unit, the recycling rate is between 2,700 l/min and 3,500 l/min.
